川消消防控制柜上的指示灯含义
来源：http://www.cx-fire.com/ 日期：2023-04-28

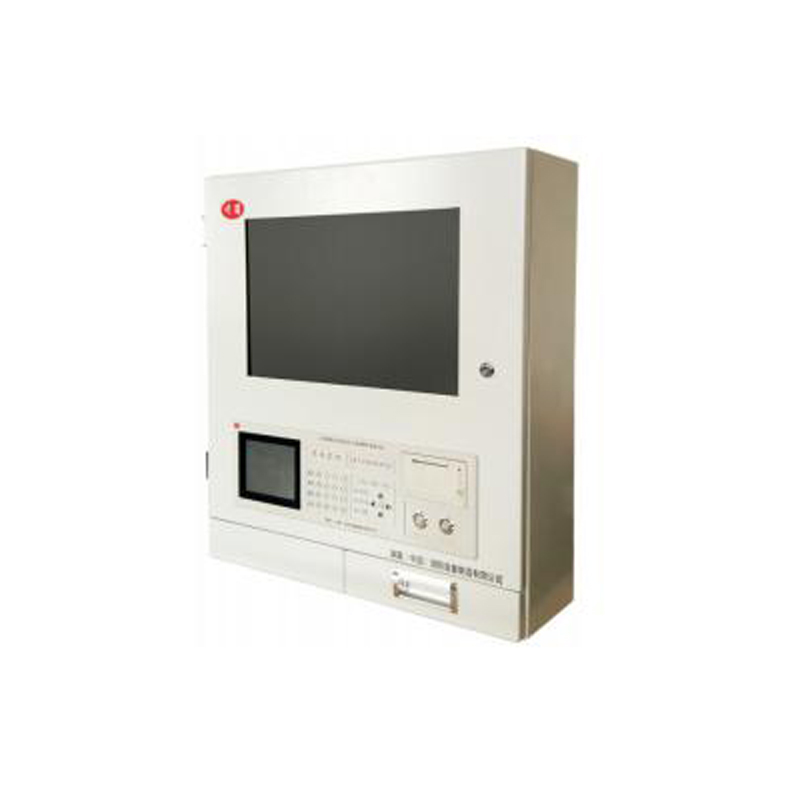

很多消防控制室值班人员都对消防控制柜感到害怕，一来不会操作：怕；二来担心操作损坏：怕，今天就来
川消小编一起来简单地学习下消防控制柜上的指示灯含义事项吧。
Many on duty personnel in the fire control room are afraid of the fire control cabinet, as they cannot operate it; Secondly, worry about operational damage: I'm afraid. Today, let's learn the meaning of the indicator lights on the fire control cabinet together.
监管灯：红色，此灯亮表示控制器检测到了外部设备的监管信号，系统处于监管状态。复位控制器后此灯熄灭。
Supervision light: Red, this light indicates that the controller has detected a supervision signal from external devices and the system is in a supervision state. After resetting the controller, this light turns off.
屏蔽灯：黄色，当外部设备（探测器、模块或火灾显示盘、本机警报器）发生故障时，可将它屏蔽掉，待修理或更换后，再利用取消屏蔽功能将设备恢复。有屏蔽设备存在时此灯亮。
Shield light: Yellow. When external devices (detectors, modules, fire display panels, local alarms) malfunction, they can be shielded. After repair or replacement, the device can be restored by using the unshielding function. This light comes on when there is a shielding device present.
警报器启动灯：红色，有警报器处于启动状态时，此灯点亮，当停动警报器或警报器消音后，此灯熄灭。
Alarm start light: Red, when an alarm is in the start state, this light will light up. When the alarm is stopped or silenced, this light will go out.
火警传输动作/反馈：红色，当系统中有火警信息传输时，该灯闪亮，当接收到火警传输设备的反馈信号后该灯常亮；有新的火警信息传输时，该灯再次闪亮。该灯可反映信息传输的新状态。
Fire alarm transmission action/feedback: red, when there is a fire alarm information transmission in the system, this light will flash, and it will remain on when receiving a feedback signal from the fire alarm transmission equipment; When a new fire alarm message is transmitted, the light flashes again. This light can reflect the new state of information transmission.
工作灯：绿色，当控制器工作时，此灯点亮。
Work light: Green, illuminated when the controller is working.
主电工作灯：绿色，当控制器由AC220V电源供电工作时，此灯点亮。
Main power work light: Green, this light will light up when the controller is powered by AC220V power.
备电工作灯：绿色，当控制器由备电供电工作时，此灯点亮。
Backup power work light: Green, this light will light up when the controller is powered by backup power.
调试状态灯：绿色，当控制器处于调试状态时，此灯点亮。
Debugging status light: Green, this light will light up when the controller is in debugging state.
自检灯：黄色，当系统中有设备处于自检状态时，此灯点亮。
Self test light: Yellow, lit when a device in the system is in self test state.
警报器消音灯：黄色，当控制器发出警报音响时，按“警报器消音/启动”键该灯点亮，警报器终止发出警报。如再次按下“警报器消音/启动”键或有新的警报发生时，警报器消音指示灯熄灭，同时警报器再次发出警报声。
Alarm Silencer Light: Yellow. When the controller emits an alarm sound, press the "Alarm Silencer/Start" button to turn on the light, and the alarm will terminate and sound the alarm. If the "Alarm Silence/Start" button is pressed again or a new alarm occurs, the alarm silence indicator light will go out, and the alarm will sound again.
启动灯：红色，当控制器发出启动命令后，该灯常亮；当发出启动命令后在10s内未收到要求的反馈信号，该灯闪亮；复位控制器后，此灯熄灭。
Start light: red, which remains on when the controller issues a start command; When the required feedback signal is not received within 10 seconds after issuing the start command, the light flashes; After resetting the controller, this light goes out.
延时灯：红色，此灯亮表示系统中存在延时启动的设备，具体信息见液晶显示。延时结束或复位控制器后，此灯熄灭。
Delay light: Red, this light indicates the presence of delayed startup devices in the system. Please refer to the LCD display for specific information. After the delay ends or the controller is reset, this light will turn off.
反馈灯：红色，此灯亮表示控制器接收到外接设备的反馈信息，具体信息见液晶显示。复位控制器后，此灯熄灭。
Feedback light: Red, this light indicates that the controller has received feedback information from external devices. Please refer to the LCD display for specific information. After resetting the controller, this light goes out.
自动允许灯：绿色，此灯常亮表示系统处于全部允许状态；此灯闪亮表示系统处于部分允许状态；此灯熄灭表示系统处于自动禁止状态。
Automatic permission light: Green, this light is constantly on, indicating that the system is in a fully allowed state; This light flashing indicates that the system is in a partially allowed state; If this light goes off, it indicates that the system is in an automatic inhibit state.
喷洒允许灯：绿色，此灯亮表示控制器处于喷洒允许状态，气体灭火设备可以被手动启动或自动联动；此灯灭表示控制器处于喷洒禁止状态，气体灭火设备不能被手动启动或自动联动。
Spraying permission light: green, this light indicates that the controller is in the spraying permission state, and the gas fire extinguishing equipment can be manually started or automatically linked; When this light is off, it indicates that the controller is in a spray prohibited state, and the gas fire extinguishing equipment cannot be manually started or automatically linked.
喷洒请求灯：红色，当系统中有气体灭火设备处于延时启动阶段时，此灯点亮，当控制器向气体灭火设备发出启动命令后，此灯熄灭。
Spray request light: Red. When there is a gas fire extinguishing device in the system in the delayed start stage, this light will light up. When the controller sends a start command to the gas fire extinguishing device, this light will go out.
喷洒启动灯：红色，此灯亮表示控制器已向气体灭火设备发出启动命令。
Spray start light: Red, this light indicates that the controller has issued a start command to the gas fire extinguishing equipment.
气体喷洒灯：红色，此灯亮表示控制器接收到气体灭火设备反馈信号。
Gas spray light: Red, this light indicates that the controller has received a feedback signal from the gas fire extinguishing equipment.
故障灯：黄色，此灯亮表示控制器检测到外部设备（探测器、模块或火灾显示盘）有故障，或控制器本身出现故障，具体信息见液晶显示。故障排除后，按“复位”键此灯熄灭。
Fault light: Yellow, this light indicates that the controller has detected a fault with external devices (detectors, modules, or fire display panels), or the controller itself has a fault. Please refer to the LCD display for specific information. After troubleshooting, press the "Reset" button to turn off the light.
系统故障灯：黄色，当系统存储器发生故障或系统程序无法正常运行时，此灯点亮，以提示用户立即对控制器进行修复。
System fault light: Yellow. When there is a fault in the system memory or the system program cannot run normally, this light will light up to prompt the user to immediately repair the controller.
声光警报器故障灯：黄色，当系统中有声光警报器处于故障状态时，此灯点亮。
Audible and visual alarm fault light: yellow, when there is an audible and visual alarm in the system in a fault state, this light will light up.
声光警报器屏蔽灯：黄色，当系统中存在被屏蔽的声光警报器时，此灯点亮。
Sound and light alarm shielding light: yellow, this light will light up when there is a shielded sound and light alarm in the system.
火警传输故障/屏蔽灯：黄色，当系统中的火警传输设备发生故障时，该灯闪亮，若火警传输设备被屏蔽，则该灯保持常亮。
Fire alarm transmission fault/shielding light: Yellow, flashing when the fire alarm transmission equipment in the system malfunctions. If the fire alarm transmission equipment is shielded, the light remains on.
That's all for the explanation of the meaning of the indicator lights on the fire control cabinet. We hope to provide you with good help. For more information, please come to our website http://www.cx-fire.com Consult!
