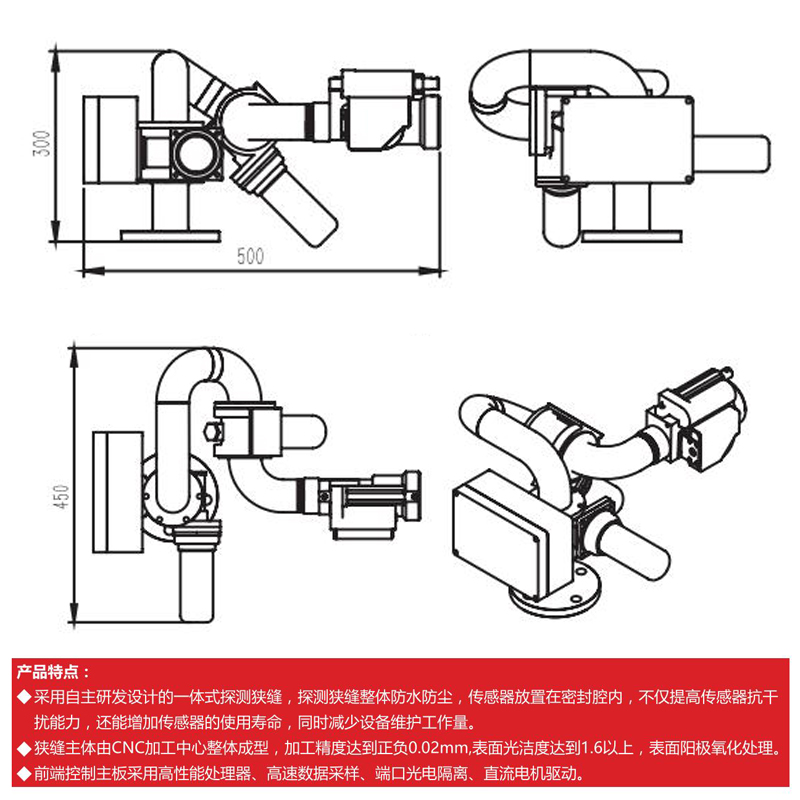

自泄式消防水炮能够使操作人员可以远距离直接控制火炮的射角，可以很好地保护人身。喷水柱时，可扑灭固体火；喷洒水雾时，可用于火场降温和火灾救援。本产品是适用于重型消防车、消防船舶、工矿企业、仓库、油田、储罐等的固定式灭火设备。那么自泄式消防水炮的布线要求是怎样的？

The self discharging fire water monitor enables the operator to directly control the firing angle of the gun from a long distance, which can well protect personal safety. Solid fire can be extinguished when spraying water column; When spraying water mist, it can be used for fire site cooling and fire rescue. This product is a fixed fire extinguishing equipment suitable for heavy fire engines, fire ships, industrial and mining enterprises, warehouses, oil fields, storage tanks, etc. What are the wiring requirements for the self discharging fire water monitor?

1、控制系统是一块电路板。

1. The control system is a circuit board.

2、接线方式控制箱与控制箱串联，接头应尽量减少，不要拉下蒙皮。

2. Wiring mode the control box is connected in series with the control box, and the connectors shall be minimized without pulling down the skin.

3、通讯线布线距离RS485通讯线≤800m：使用耐火屏蔽双绞线2.5平方RS485通讯线≥800m：建议使用光纤传输（铺设光纤时需要购买一对CAN到光纤转换器，光纤应为多芯单模铠装光纤，连接光纤时必须选择熔接光纤。）

3. The distance between the communication line and the RS485 communication line shall be ≤ 800m: the fire-resistant shielded twisted pair 2.5 square RS485 communication line shall be used ≥ 800m: it is recommended to use optical fiber transmission (a pair of can to optical fiber converters shall be purchased when laying the optical fiber, the optical fiber shall be multi-core single-mode armored optical fiber, and the fusion optical fiber must be selected when connecting the optical fiber.)

4、通讯线接线注意事项RS485通讯口不要强电。通讯线的屏蔽层必须接地。通讯线路应与强电分开布管，分开走线。

4. Precautions for communication line wiring: RS485 communication port shall not have strong current. The shielding layer of the communication line must be grounded. The communication line shall be laid separately from the strong current.

5、控制系统为继电器。

5. The control system is relay.

6、接线方式控制箱与主机分开连接，控制箱与控制箱内的控制线不能串联。

6. Wiring mode the control box and the host are connected separately, and the control lines in the control box and the control box cannot be connected in series.

7、控制线接线注意事项尽量减少接头数量，并按接线图接线。

7. Precautions for control line wiring: reduce the number of connectors as far as possible and connect according to the wiring diagram.

消防炮安装前应对系统管网进行压力试验，试验合格后进行冲洗；安装火炮下法兰，调整法兰端面与水平仪水平；枪体采用4个配套螺栓固定，法兰连接采用橡胶圈密封；接通电源，调整线束长度，保证灭火装置在转动范围内不受限制，并有轻微余量；每台消防炮安装完成并接线无误后，可用现场手动控制箱进行通电测试，通过现场手动控制箱遥控后拆除脚手架。

Before the installation of the fire monitor, the system pipe network shall be pressure tested and flushed after passing the test; Install the lower flange of the gun, and adjust the flange end face to be level with the level gauge; The gun body is fixed with 4 matching bolts, and the flange connection is sealed with rubber rings; Connect the power supply and adjust the length of the harness to ensure that the fire extinguishing device is not restricted within the rotation range and has a slight margin; After the installation of each fire monitor is completed and the wiring is correct, the on-site manual control box can be used for power on test, and the scaffold can be removed after remote control through the on-site manual control box.

此外川消提醒大家，定期的检查事项很重要，自泄式消防水炮在使用前应先检查控制器电源电路和无线控制设备，保证电流电压在正常的范围内，遥控器内电池也正常。定期保持消防炮体整洁，使用泡沫灭火后应用清水冲洗干净。定期在转动部位加注润滑油，保证转动灵活。若发现喷射压力过高或射程较近时，应检查喷头处是否有堵塞物，若有应及时。

In addition, Chuanxiao reminded everyone that regular inspection is very important. Before using the self discharging fire monitor, check the controller power circuit and wireless control equipment to ensure that the current and voltage are within the normal range, and the battery in the remote controller is also normal. Regularly keep the fire monitor clean and tidy, and wash it with clean water after extinguishing with foam. Regularly add lubricating oil to the rotating parts to ensure flexible rotation. If it is found that the injection pressure is too high or the range is close, check whether there is any blockage at the nozzle, and if so, remove it in time.
