随着智能消防设备的发展，带图像的消防设备收到用户的热捧，尤其是智能消防水炮系统和图像型火灾探测器系统。智能消防水炮在场景中使用数量较少，布线也简单;但是图像型火灾探测器的使用数量较多，布线方式多种多样，怎么布线简单，省钱，布线的速度还快呢?下面川消小编为您分析：

With the development of intelligent firefighting equipment, image-based firefighting equipment has received great popularity from users, especially intelligent firefighting water monitor systems and image-based fire detector systems. The number of intelligent fire water monitors used in the scene is relatively small, and the wiring is also simple; However, there are a large number of image type fire detectors used, and there are various wiring methods. How can they be easily wired, save money, and have a fast wiring speed? Below, the editor of Chuanxiao will analyze for you:

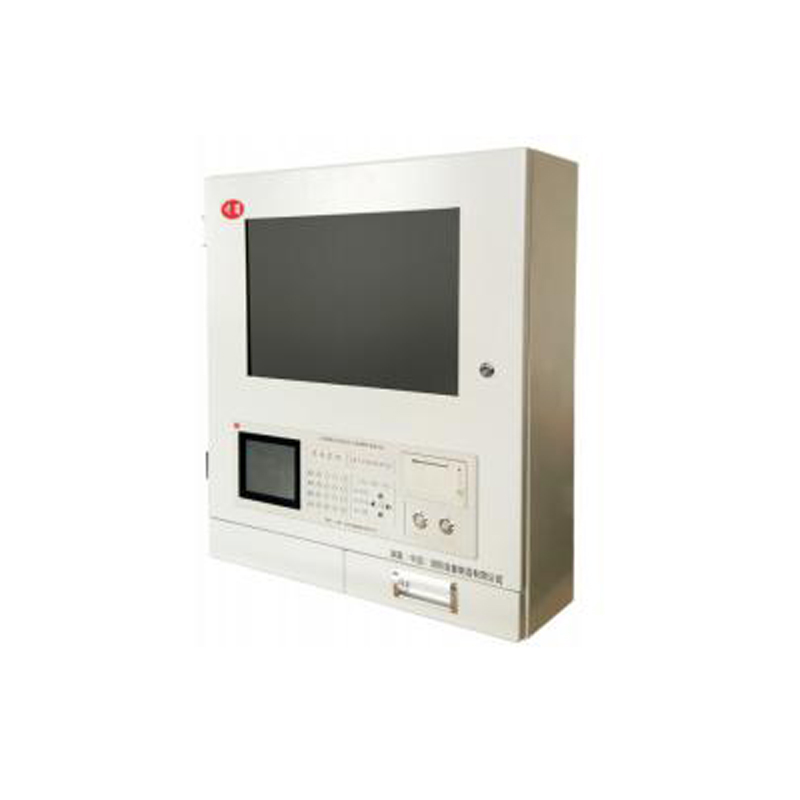

图像型火灾探测器常规的线路只有24V电源线，传输视频的网线，有的厂家可能还需要传输信号的信号线，而采用川消的图像探测器主机的话，视频线具有传输信号的作用，所以不需要信号线就能完成布线。

The conventional wiring for image type fire detectors only has a 24V power line and a network cable for transmitting video. Some manufacturers may also need a signal line for transmitting signals. However, if using the image detector host of the Chuanxiao brand, the video line has the function of transmitting signals, so the wiring can be completed without a signal line.

但是，几十台图像型火灾探测器分布在不同的防火区域，电源线还好说，但是使用网线布置的时候，不但使用的数量多，线路复杂;而且网线的传输距离受到限制，常用的网线的传输距离小于100米。

However, dozens of image type fire detectors are distributed in different fire prevention areas, and the power cord is easy to say. However, when using network cable layout, not only does it require a large number of users, but the circuit is complex; Moreover, the transmission distance of network cables is limited, with commonly used network cables having a transmission distance of less than 100 meters.

有懂行的用户可能会说，网线多采用交换机级联就可以了啊，这样的方式可行，但是要么使用的网线多，要么使用的交换机数量多，一级一级的节点布置，在后期一旦有视频出现问题，查线麻烦。

Experienced users may say that using switch cascading for network cables is sufficient. This approach is feasible, but either a large number of network cables are used or a large number of switches are used. The arrangement of nodes at each level can be troublesome in case of video problems in the later stage.

也有用户说，使用光纤就可以这样的问题了吧，没错，但是光纤的连接有两种方式，一种是普通的网络交换机配光端机实现;另外一种就是光纤交换机。目前来说，使用光纤交换机是为便捷的一种方式。

Some users also say that using optical fiber can solve such problems, right? However, there are two ways to connect optical fibers: one is to use ordinary network switches with optical terminals; Another type is fiber optic switches. Currently, using fiber optic switches is a convenient way.

总结来说：

In summary:

使用网线，加上交换机，级联的方式布线。

Use network cables, add switches, and cascade wiring.

使用网线，加上交换机，再加上光端机和光纤布线。

Use network cables, add switches, and add optical terminals and fiber optic cabling.

使用网线，加上光纤交换机和光纤汇聚器连接。

Use network cables, coupled with fiber optic switches and fiber optic aggregators for connection.

如果采用第二种方式，那么有几个交换机就需要布置几对光端机，对于在中控室的主机来说，光端机需要的数量较多。

If the second method is adopted, several pairs of optical terminals need to be arranged for several switches. For the host in the central control room, the number of optical terminals is relatively large.

为简单的就是光纤交换机和光纤汇聚器。假如有100台设备需要安装，那么我们可以配置8电2光或者16电2光的交换机，大概需要13台个或者7台;配置一台4光2电的汇聚器就可以完成视频信号的布线。

The simplest ones are fiber optic switches and fiber optic aggregators. If there are 100 devices that need to be installed, we can configure switches with 8 power and 2 optical or 16 power and 2 optical, which will require approximately 13 or 7 devices; Configuring a 4 optical and 2 electrical concentrator can complete the wiring of video signals.

具体的配置可以咨询川消厂家，使用效率高的布线方式，节省工期，节省人力，节省工程费用。还有怎样的疑惑或者需求，就来我们网站http://www.cx-fire.com咨询吧！

The specific configuration can be consulted with the Sichuan consumer electronics manufacturer, using efficient wiring methods to save time, manpower, and engineering costs. If you have any further doubts or needs, please come to our website http://www.cx-fire.com Consult!
