消防水炮是现在应用较多的一类自动灭火设备，那么关于消防水炮灭火系统工作方式以及安装事项您有了解吗？接下来一起来看看资讯吧。

Fire water monitor is a kind of automatic fire extinguishing equipment which is widely used now. Do you know about the working mode and installation of fire water monitor fire extinguishing system? Next, let's take a look at the information.

消防水炮灭火系统工作方式

Working mode of fire water monitor fire extinguishing system

火灾探测部位的双波段探测器或光学截面探测器报警后，空间定位精度高的双波段火灾探测器定位点火点，信息处理主机通知自动火灾处理后的战斗信号。水炮驱动自动消防水炮对空间火点进行扫描锁定，自动将消防水炮对准火源。

After the dual band detector or optical section detector at the fire detection position gives an alarm, the dual band fire detector with high spatial positioning accuracy locates the ignition point, and the information processing host notifies the battle signal after automatic fire processing. The water monitor drives the automatic fire water monitor to scan and lock the space fire point, and automatically aim the fire water monitor at the fire source.

前端水流量指示器的反馈信号和泵房压力继电器的开度信号显示在控制室的控制台上。当主机报警结束时，会自动关闭消防泵和消防电动蝶阀。

The feedback signal of the front-end water flow indicator and the opening signal of the pump room pressure relay are displayed on the console in the control room. When the alarm of the main engine ends, the fire pump and fire electric butterfly valve will be automatically closed.

消防中心收到火灾报警系统发出的火灾报警信号后，消防中心值班人员将通过系统强制切换的彩色视频图像进一步确认消防控制室。将火炮调火点，启动消防泵，打开电动阀，实施洒水灭火。

After the fire control center receives the fire alarm signal sent by the fire alarm system, the personnel on duty of the fire control center will further confirm the fire control room through the color video image forcibly switched by the system. Adjust the gun to the fire point, start the fire pump, open the electric valve and spray water to extinguish the fire.

现场人员找到火点后，操作相应火炮下方的现场手动控制面板，直接调节火炮对准火点，开火抽水并打开电动阀，实施洒水灭火，同时向消防部门发送报警信号控制中心。

After finding the fire point, the on-site personnel operate the on-site manual control panel under the corresponding gun, directly adjust the gun to aim at the fire point, fire and pump water, open the electric valve, spray water to extinguish the fire, and send an alarm signal to the fire department to the control center at the same time.

消防水炮灭火系统安装

Installation of fire water monitor fire extinguishing system

安装火灾探测器。在探测器的保护范围（视野）内不应有障碍物。探测器应水平安装。当必须倾斜安装时，倾斜角度不应大于45°C。

Install fire detectors. There shall be no obstacles within the protection range (field of view) of the detector. The detector shall be installed horizontally. When inclined installation is necessary, the inclination angle shall not be greater than 45 ° C.

安装火灾自动监测仪前，应完成供水管网的水压强度和密封性试验，同时完成管网冲洗；火灾自动探测器与墙壁的距离不应妨碍火灾自动探测器的转动；

Before installing the automatic fire monitor, the water pressure strength and tightness test of the water supply pipe network shall be completed, and the pipe network flushing shall be completed at the same time; The distance between the automatic fire detector and the wall shall not hinder the rotation of the automatic fire detector;

短冒口应固定牢固，在自动喷枪进气法兰下方10厘米处设置固定点；电动阀、水流指示器和闸阀水平安装；火炮扫描范围内不应有影响火炮动作和操作的障碍物；

The short riser shall be fixed firmly, and a fixed point shall be set 10 cm below the air inlet flange of the automatic spray gun; Horizontal installation of electric valve, water flow indicator and gate valve; There should be no obstacles affecting the action and operation of the artillery within the scanning range of the artillery;

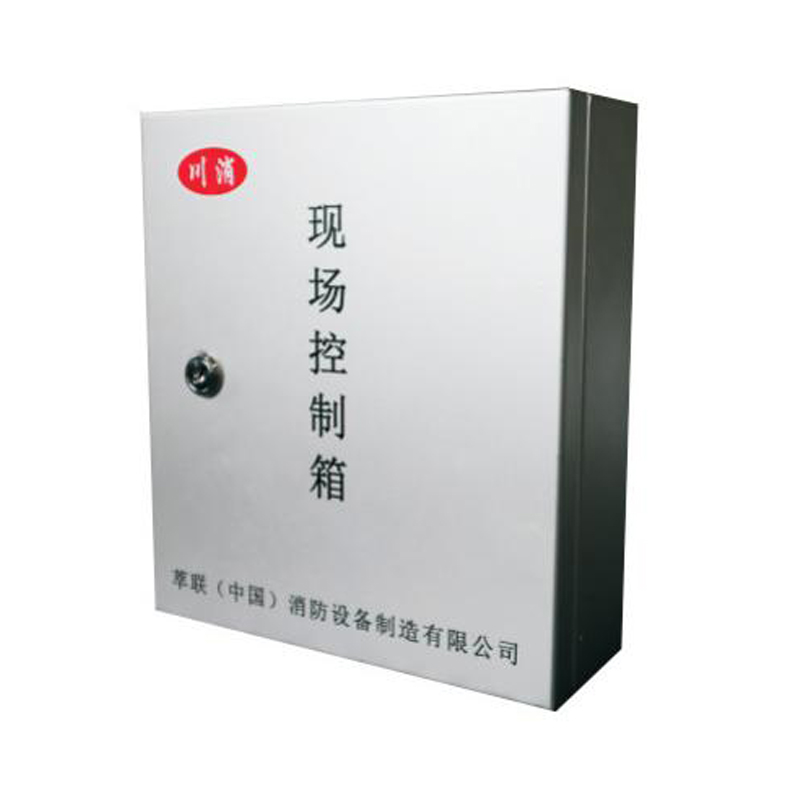

川消消防水炮现场控制面板应安装在便于操作的位置。操作现场控制面板时，应注意数控消防的运动方向和停止位置，并应清楚观察水炮；火警的连接电缆应捆扎牢固。

The on-site control panel of Chuanxiao fire monitor shall be installed at a position convenient for operation. When operating the on-site control panel, pay attention to the movement direction and stop position of NC fire fighting, and clearly observe the water monitor; The connecting cable of fire alarm shall be tied firmly.

消防水炮灭火系统工作方式以及安装事项便是这样了，如果您想了解更多关于消防设备的信息，就来关注川消网站www.cx-fire.com吧，为您做详细解答。

The working mode and installation of fire water monitor fire extinguishing system are like this. If you want to know more about fire-fighting equipment, please pay attention to www.cx-fire.com COM, for you to do a detailed answer.
