消防炮快速灭火的使用原理
来源：http://www.cx-fire.com/ 日期：2022-05-18
在消防行业，消防炮是很多设计单位和消防施工单位常用的消防设备。它采用红紫外检测和数字图像处理技术，检测火灾发生时产生的火焰、温度等自动跟踪定位，并采用自动控制方式实现消防。那么消防炮是如何灭火的呢？
In the fire-fighting industry, fire monitor is a common fire-fighting equipment used by many design units and fire-fighting construction units. It uses red and ultraviolet detection and digital image processing technology to detect the flame and temperature generated in the event of fire, and automatically track and locate, and uses automatic control to realize fire control. So what about fire guns?
消防炮的工作原理是通过前端探测系统采集现场红外图像，控制器采用图像处理的手段对发生在控制区域内的火灾进行侦测和定位，这样的设计便于消防炮打开相应的联动设备并控制水炮进入喷水灭火操作。消防炮的炮由底座、进水管、回转体、集水管、射流调节环、手把和锁紧机构等组成，炮身可作水平回转和仰俯回转，并可实现定位。
The working principle of the fire monitor is to collect the on-site infrared image through the front-end detection system, and the central controller uses the means of image processing to detect and locate the fire in the control area. This design is convenient for the fire monitor to open the corresponding linkage equipment and control the water monitor to enter the sprinkler operation. The gun of the fire monitor is composed of a base, a water inlet pipe, a rotating body, a water collecting pipe, a jet adjusting ring, a handle and a locking mechanism. The gun body can rotate horizontally and pitching, and can realize positioning.
消防炮这样的设计有什么特点呢？这样设计使得消防炮的使用压力范围广，射程远并可实施直流90°开花、水雾射流的无极调节。其重量轻、体积小、功能全、灭火效果好，使该炮的特点。
What are the characteristics of the design of fire monitor? This design enables the fire monitor to have a wide range of application pressure and long range, and can realize the stepless adjustment of DC to 90 ° flowering and water mist jet. Its light weight, small volume, full function and good fire extinguishing effect make the gun unique.
自动火炮是如何灭火的，也是很多消防行业新手和智能火炮新手都想知道的。它由水装置和智能灭火装置控制器、解码器/现场控制箱、现场控制面板或无线遥控器组成。自动火灾监测仪本身有一个红色和紫外线双波段探测器。
How automatic artillery extinguishes fire is also what many novices in the fire industry and intelligent artillery want to know. It is composed of water device and intelligent fire extinguishing device controller, decoder / field control box, field control panel or wireless remote controller. The automatic fire monitor itself has a red and ultraviolet dual band detector.

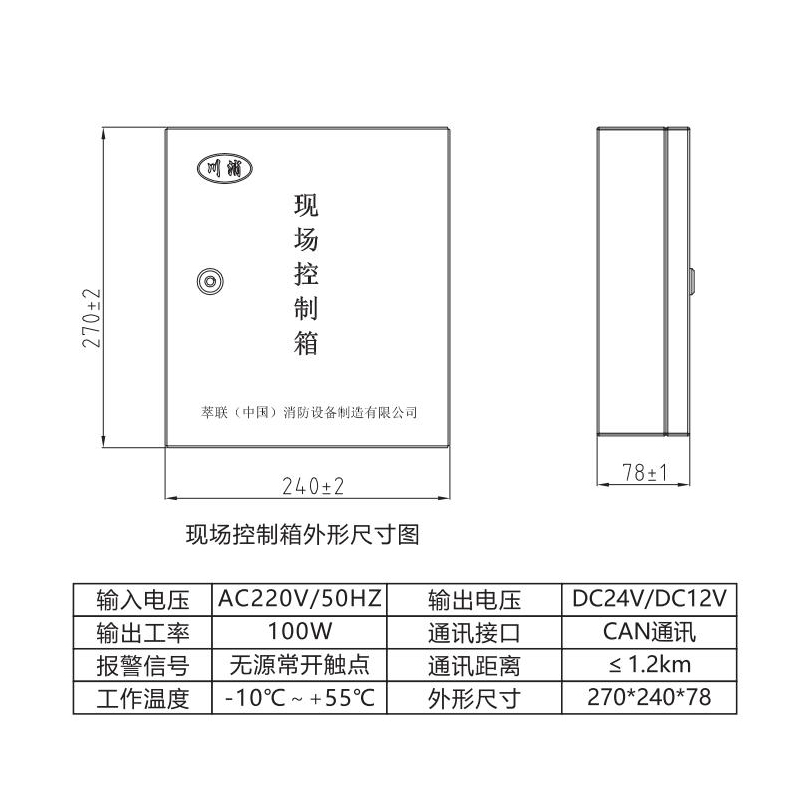

当检测到火灾时，向火灾监控主机发送报警信号，然后主机向自动灭火报警系统发送报警信号。火灾自动监测仪主体可与现场区域控制相连，通过现场区域控制箱可对水炮进行控制和操作，现场区域控制箱可手动控制瞄准和灭火。
When a fire is detected, it sends an alarm signal to the fire monitoring host, and then the host sends an alarm signal to the automatic fire extinguishing alarm system. The main body of the automatic fire monitor can be connected with the on-site area control. The water cannon can be controlled and operated through the on-site area control box, and the on-site area control box can manually control aiming and fire extinguishing.
当发现火灾时，火灾自动监测器会立即启动，智能扫描火源，在很短的时间内确定火源的具体位置。瞄准火源射水灭火。火源扑灭后，智能灭火装置控制器会发出停止喷水指令。如果发现新的火源，智能灭火装置控制器将重复上述过程，待所有火源扑灭后返回监控状态。
When a fire is found, the automatic fire monitor will start immediately to intelligently scan the fire source and determine the specific location of the fire source in a very short time. Aim at the fire source and shoot water to extinguish the fire. After the fire source is extinguished, the intelligent fire extinguishing device controller will issue a stop spraying command. If a new fire source is found, the intelligent fire extinguishing device controller will repeat the above process and return to the monitoring state after all fire sources are extinguished.
山东川消建议平常使用中应经常检查喷枪的完整性和操作灵活性。 如发现紧固件松动，应及时修理，使喷枪保持良好的工作状态。 喷水操作时，松开锁紧螺钉，调整喷枪的喷射方向和角度，然后将压力增加到使用压力。 转动射流调节环可实现水直流转开花，或开花转直流。 每次使用后，应用清水喷洒一段时间，然后将枪内的水排干。 如有必要，应在管道中安装排水阀。
In normal use, the integrity and operation flexibility of the spray gun should be checked frequently. If the fastener is found to be loose, it shall be repaired in time to keep the spray gun in good working condition. When spraying water, loosen the locking screw, adjust the spraying direction and angle of the spray gun, and then increase the pressure to the service pressure. Rotating the jet adjusting ring can realize water DC to flowering or flowering to DC. After each use, spray with clean water for a period of time, and then drain the water in the gun. If necessary, drain valves shall be installed in the pipeline.
The use principle of fire monitor for rapid fire extinguishing is explained above. If you need or are interested in it, please directly follow this website www.cx-fire.com Com for more information.
